75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable

Name: 75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
Brand: OEM Produce
Price: 1 USD

Quality 75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable wholesale

Brand Name : OEM Produce

Model Number : QR540JCASS

Certification : CE. ROHS.

Place of Origin : Hangzhou, China

MOQ : 10km

Price : FOB Shanghai Price: 630.0 USD/1000m

Payment Terms : TT. LC

Supply Ability : 5000km/ Month

Delivery Time : 20days after deposit

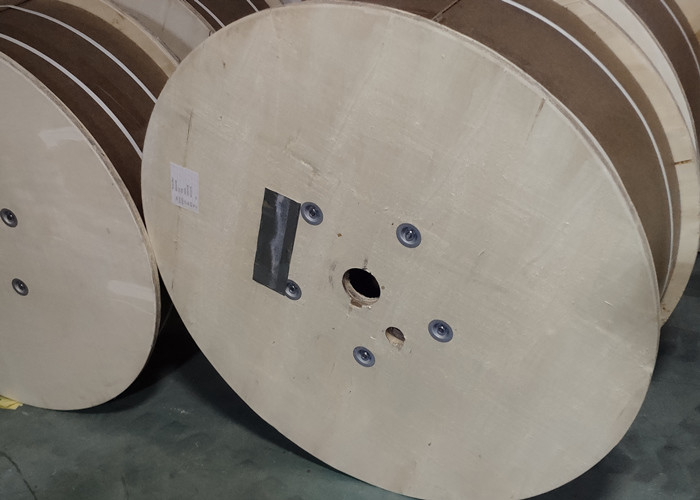

Packaging Details : 500M/ 1000M/ Wooden Drum

Type : 75Ohm Coaxial Cable

Spec : AL Tape RF Trunk Cable

Connector : BC/ CCA

Jacket : PE Outdoor

Contact Now

75 Ohm Coax Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk

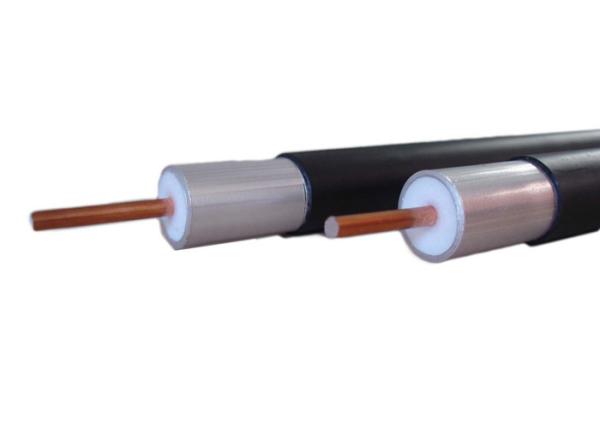

Coaxial cable QR540 Trunk AL Tube Coaxial

Construction
Inner Conductor	Material	CCA
Inner Conductor	Diameter(mm)	3.15
Dielectric	Material	Foam PE
Dielectric	Diameter(mm)	13.05
Shield	Material	Solid AL Tube
Shield	Diameter(mm)	13.72
Outer Jacket	Material	PE
Outer Jacket	Diameter(mm)	15.49

Electrical Characteristics

Impedance (Ω)	75±3
Capacitance (pF/m)	52±2
Velocity of Propagation(﹪)	87.0
Return Loss
5-1000MHz(db)	≥22
Screening Effectiveness
5-1000MHz	≥22

Attenuation(@20℃)

Frequency (MHZ)	Max Attenuation (dB/100m)
5	0.64
55	1.54
83	1.90
211	3.12
250	3.38
300	3.71
350	4.04
400	4.33
500	4.89
750	6.07
865	6.56
1000	7.12

75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
